Name: New Normal Turning Machine C6140 Horizontal Lathe Machine
Brand: Sanmore
Price: 1 USD

Brand Name : Sanmore

Model Number : C6140

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C

Supply Ability : 50 sets per month

Delivery Time : about 30 days

Packaging Details : Wooden case

Contact Now

C6140 Horizontal Lathe Machine

Specification lathe machine		CA6140 CA6240
		CA6140B CA6240B
Max .Swing over bed		400mm
Max .Swing over carriage		210mm
Max .Swing in gap		——	630mm
Effective gap length		——	210mm
Max .length of work piece		750/1000/1500/2000/2200/3000mm
Width of bed		400mm
Section of turning tool		25×25mm
Spindle	Spindle speed	10-1400rpm/16-1400rpm(24steps)
	Hole through spindle	52mm ,(80mm),[105mm]
	Spindle taper	No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed	(64 kinds)(for each)
	Range of metric threads	(1-192mm) (44 kinds)
	Range of inch threads	(1-24tpi) (21kinds)
	Range of module threads	0.25-48 (module 39 kinds)
	Range of diametral pitch threads	1-96DP (37 kinds)
Tailstock	Max. tailstock spindle travel	150mm
	Tailstock spindle diameter	75mm
	Taper of tailstock spindle center hole	NO.5 (MT5)
Main motor		7.5KW(10HP)

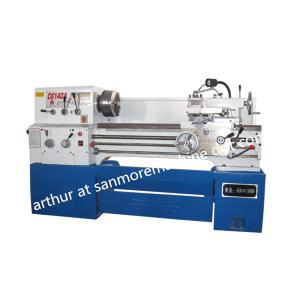

New Normal Turning Machine C6140 Horizontal Lathe Machine Images
